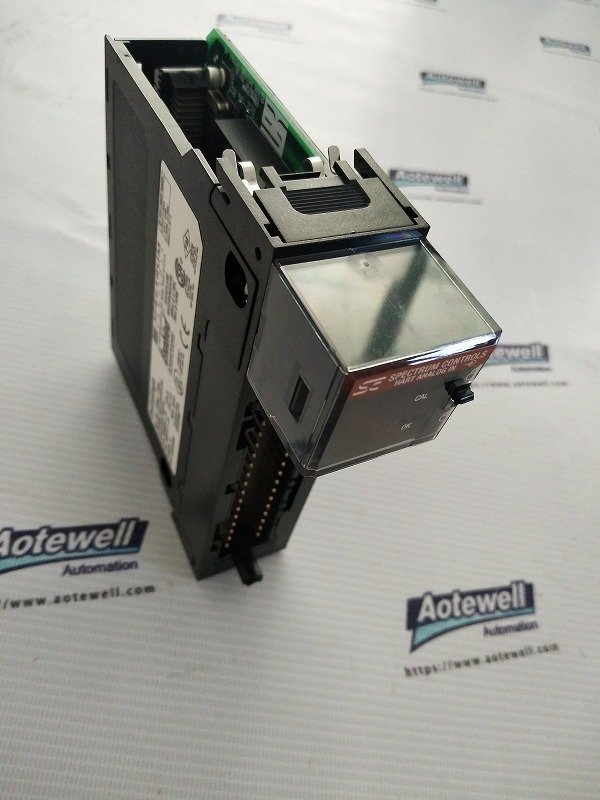

1756-IF16H
Allen-Bradley
Input Module,ControlLogix,Analog,16 Point,Differential Inputs,HART Protocol,Current
| Brand | Allen-Bradley |
| Resolution | 16-21 Bits |
| Module Type | Analog Input module with HART protocol |
| Part Number/Catalog No. | 1756-IF16H |
| Product Family: | PanelView Plus / PanelView Plus CE Operator Terminals |
| No. of Inputs | 16 Differential input; Dedicated HART modem per channel |
| Analog signals | 0-20 mA and 4-20 mA |
| Conversion method: | Successive approximation |
| Data Format: | Integer mode (left justified, 2 s complement) IEEE 32-bit floating point |
| Module input scan time, min | 11…328 ms (filter dependent) |
| Module HART scan time | Estimate 1 s if all channels are HART enabled |
| Removable Terminal Block | 1756-TBCH; 1756-TBS6H |
| Backplane Current, 5.1VDC | 200 mA |
| Backplane Current, 24VDC | 125 mA |
| Total Backplane power | 4.02 W |
| Series | ControlLogix |
| Inputs | 16 Differential |
| Input Voltage Range | 0-20 or 4-20 milliamps |
| Overvoltage Protection | 8 Volts DC |
| Isolation Voltage | 50 Volts Continuous |
