25B-D013N114|25BD013N114
Technical Specifications for 25B-D013N114

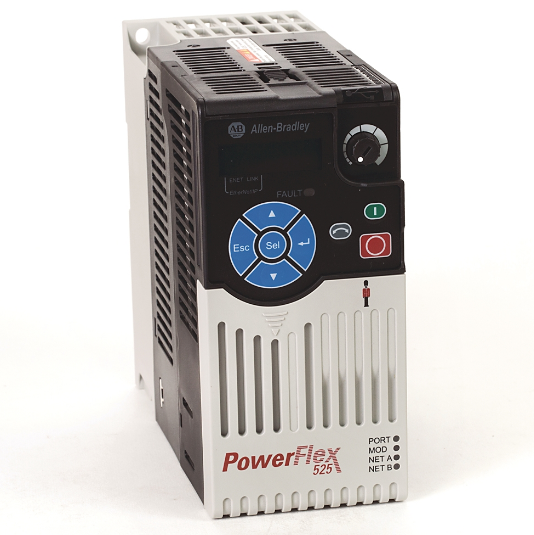

Allen Bradley PowerFlex 525 Drive with Three Phase, 480 VAC voltage and 13 Amperes Output Current
| Brand | Allen-Bradley |
| Input Voltage: | 323-528 VAC |
| Built-in communication port: | Ethernet I/P / RS485 |
| Integrated safety: | Safe-Torque Off (STO) functionality |
| PointStop Technology: | Integrated |
| Control Method: | Volts per Hertz (V/Hz), Sensorless Vector Control (SVC), Closed loop velocity vector control, and Permanent Magnet motor control. |
| Enclosure Rating: | IP20 / NEMA UL Type Open |
| Zero Stacking: | Supported |
| Installation: | Panel Mount / DIN Rail |
| I/O: | Discrete Inputs: Seven (7) Sink / Source Discrete Outputs: One (1) N.O.; One (1) N.C. Contacts; Two (2) Digital / Optocoupler Analog Input: Two (2) Analog Input 0-10VDC; 0- 20mA Analog Output: One (1) Analog Input 0-10VDC; 0- 20mA |
| Output Power: | 5.5 kW or 7.5 HP |
| Output Voltage: | 0-460VAC |
| Listing | This specification list was created by Do-Supply-Inc. |
| Input Phase: | 3-Phase |
| Part Number/Catalog No. | 25B-D013N114 |
| Product Family: | PowerFlex 525 |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Output Current | 13 A |
| Series | PowerFlex 525 Drive |
| Voltage | Three Phase, 480 VAC |
| Enclosure Type | IP20 NEMA / Open Type |
| Interface Module | Standard |
| Frame Size | Frame C |
| EMC Filtering Options | Filter |
