25B-V2P5N104|25BV2P5N104
Technical Specifications for 25B-V2P5N104

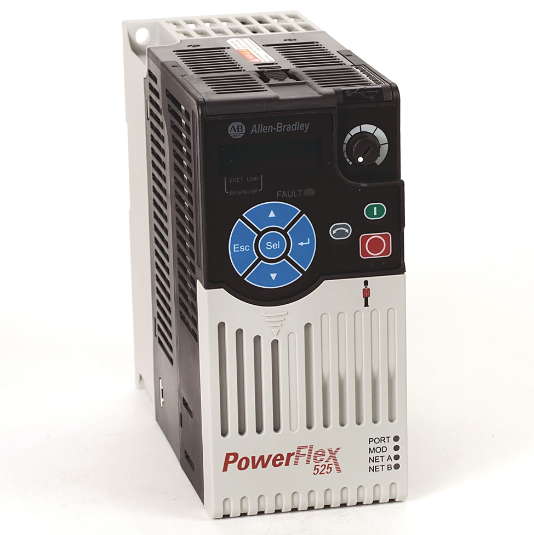

Allen Bradley PowerFlex 525 Drive with One Phase, 120 VAC voltage and 2.5 Amperes Output Current
| Brand | Allen-Bradley |
| Input Voltage: | 120VAC |
| Built-in communication port: | Ethernet I/P / RS485 |
| Integrated safety: | Safe-Torque Off (STO) functionality |
| PointStop Technology: | Integrated |
| Control Method: | Volts per Hertz (V/Hz), Sensorless Vector Control (SVC), Closed loop velocity vector control, and Permanent Magnet motor control. |
| Enclosure Rating: | IP20 / NEMA UL Type Open |
| Zero Stacking: | Supported |
| Installation: | Panel Mount / DIN Rail |
| I/O: | Discrete Inputs: Seven (7) Sink / Source Discrete Outputs: One (1) N.O.; One (1) N.C. Contacts; Two (2) Digital / Optocoupler Analog Input: Two (2) Analog Input 0-10VDC; 0- 20mA Analog Output: One (1) Analog Input 0-10VDC; 0- 20mA |
| Output Power: | 0.4 kW or 0.5 HP |
| Output Phase: | 3-Phase |
| Output Voltage: | 0-230VAC |
| Input Phase: | 1-Phase |
| Part Number/Catalog No. | 25B-V2P5N104 |
| Product Family: | PowerFlex 525 |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Output Current | 2.5 A |
| Series | PowerFlex 525 Drive |
| Voltage | One Phase, 120 VAC |
| Enclosure Type | IP20 NEMA / Open Type |
| Interface Module | Standard |
| Frame Size | Frame A |
| EMC Filtering Options | No Filter |
| UPC | 884951882843 |
