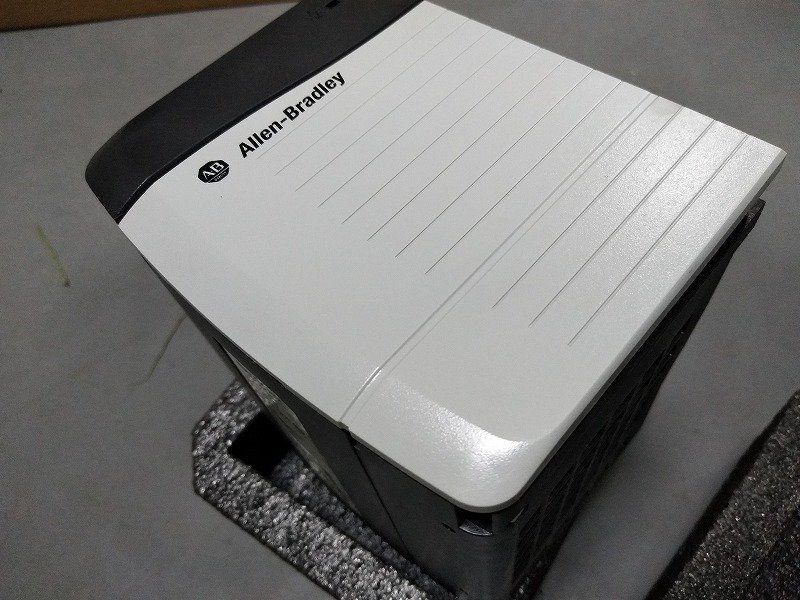

1756PB72 | 1756-PB72
Allen-Bradley
Power Supply, ControlLogix, Standard, 18 – 32 Volt DC, 2.8 Amp, 75 Watt, Chassis Mount
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1756-PB72 |
| Series | ControlLogix |
| Input Voltage | 24 Volts DC |
| Module Type | Standard DC Power Supply |
| Voltage Range | 18-32 Volts DC |
| Input Power | 95 Watts |
| Power Output | 75 Watts at 60 Celsius |
| Isolation Voltage | 250V (continuous), Reinforced Insulation Type, Power Input to Backplane Type tested @ 3500V DC for 60 s |
| Chassis | Series A |
| Max Inrush Current | 30 Amperes |
| Current Capacity | 1.5A at 1.2V; 2A at 3.3V; 8 A @ 50 °C (122 °F) 6 A @ 60 °C (140 °F) at 5.1V and 2.5 A @ 50 °C (122 °F) 2.0 A @ 60 °C (140 °F) at 24V |
| Hold Up time | 35 ms @ 18V DC; 40 ms @ 24V DC; 40 ms @ 32V DC |
| Location | 1756 Chassis Left Side |
| Operating Temperature | 32-140 Fahrenheit (0-60 Celsius) |
| Chassis Compatibility | 1756-A4/A, 1756-A7/A, 1756-A10/A, 1756-A13/A, 1756-A17/A, 1756-A4/B, 1756-A7/B, 1756-A10/B, 1756-A13/B, 1756-A17/B, 1756-A4/C, 1756-A7/C, 1756-A10/C, 1756-A13/C, 1756-A17/C |
| Enclosure | None |
| Dimensions | 14.0 x 11.2 x 14.5 cm (5.51 x 4.41 x 5.71 in.) |
| UPC | 10612598172600 |
| Weight | 0.95 kg (2.10 lb) |
