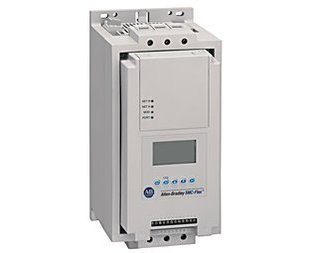

150-F480NBD — SMC Flex Smart Motor Controller
SMC-Flex, Solid State Controller, Open, 480 A, 200…400Hp @ 460V AC, Input Volt.: 200…480V, Control Volt.: 100…240V AC
| Part Number/Catalog No. | 150-F480NBD |
| Control Voltage | 100…240V AC (5…480 A units) |
| Brand | Allen-Bradley |
| Product Family: | SMC Flex Smart Motor Controller |
| Operating Modes: | Soft Start, Full Voltage Start, Smart Motor Braking, Current Limit Start, Dual Ramp Start, Accu-Stop, Selectable Kickstart, Pump Start, Slow Speed with Braking, Coast-to-rest, Preset Slow Speed, Linear Speed Acceleration (Tachometer required), Soft Stop and Pump Stop |
| Line Voltage: | 200…460V AC, 3-Phase, 50 and 60 Hz |
| Maximum output Current | 480.0 A |
| Maximum output Power | 400 HP |
| Communications | One DPI provided for connection to optional human interface and one DPI provided for connection to communication |
| Auxiliary Contacts | Four fully programmable contacts as normal/up-to- speed/fault/alarm/network (N.O./N.C.), or external bypass (N.O. only) |
| Metering | Amps, volts, kW, kWh, MW, MWH, elapsed time, power factor, motor thermal capacity usage |
| Protection and Diagnostics | Power loss, line fault, voltage unbalance, excessive starts/hour, phase reversal, undervoltage, overvoltage, controller temp, stall, jam, open gate, overload, underload, communication fault. |
| Product Line | SMC-Flex |
| Enclosure Type | open |
| Controller Rating | 480 Amps, 400 Horsepower at 460 Volts AC |
| Input Line Voltage | 200 to 460 Volts AC, 3-phase, 50 and 60 Hertz |
| Rated Voltage | 200 to 460 Volts AC |
