Article Number 6DR5120-0NG03-0AA2

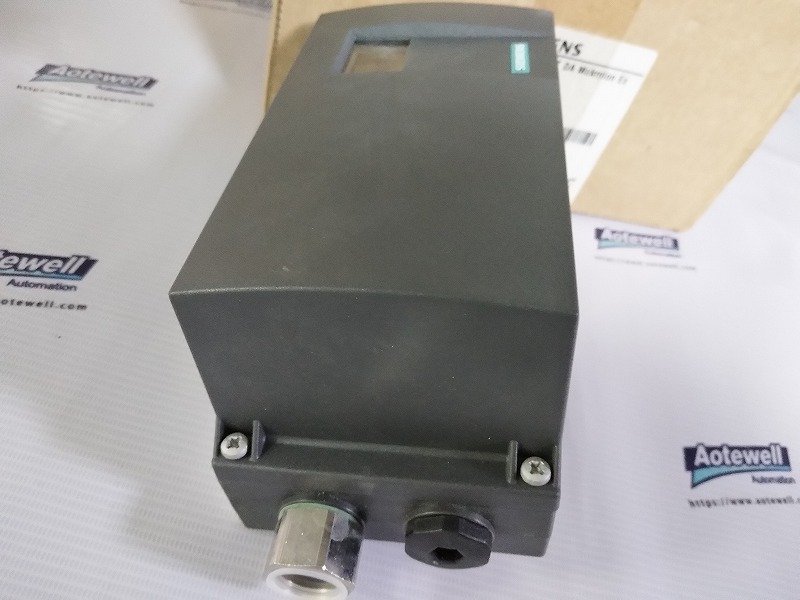

Product Description : SIPART PS2 Smart, electropneumatic positioner, 4…20mA, HART, Ex/nEx, double-acting, polycarbonate enclosure, for pneumatic linear and part-turn actuators. Non-contacting (wear-free) position detection (NCS). Standard Without explosion protection. Connection thread el.: M20x1.5 / pneu.: G 1/4 Without limit monitor. Analog Output Module (AOM) and Analog Input Module (AIM). The internal position detection via a potentiometer is not applied but can be ordered in addition with ‑Z K11. Device plug M12 is not available. Isolating power supply SITRANS I100 separately orderable (7NG4124-1AA00). . Brief instructions English / German / Chinese. Standard / Fail-Safe – Depressurizing the actuator in case of failure of electrical auxiliary power (single acting only). Manometer block aluminumG¼, double-acting with plastic manometer IP31 (MPa, bar)
Series name : SIPART PS2
positioner
4…20mA, HART, Ex/nEx
double-acting
polycarbonate enclosure
G 1/4 Without limit monitor
Protection Level : IP31
Warranty : 1 YEAR
Net Weight (kg) : 1,570 Kg
Packaging Dimension : Not available
Country of origin : France
