6AV7260-0HB30-0BX0
Image similar

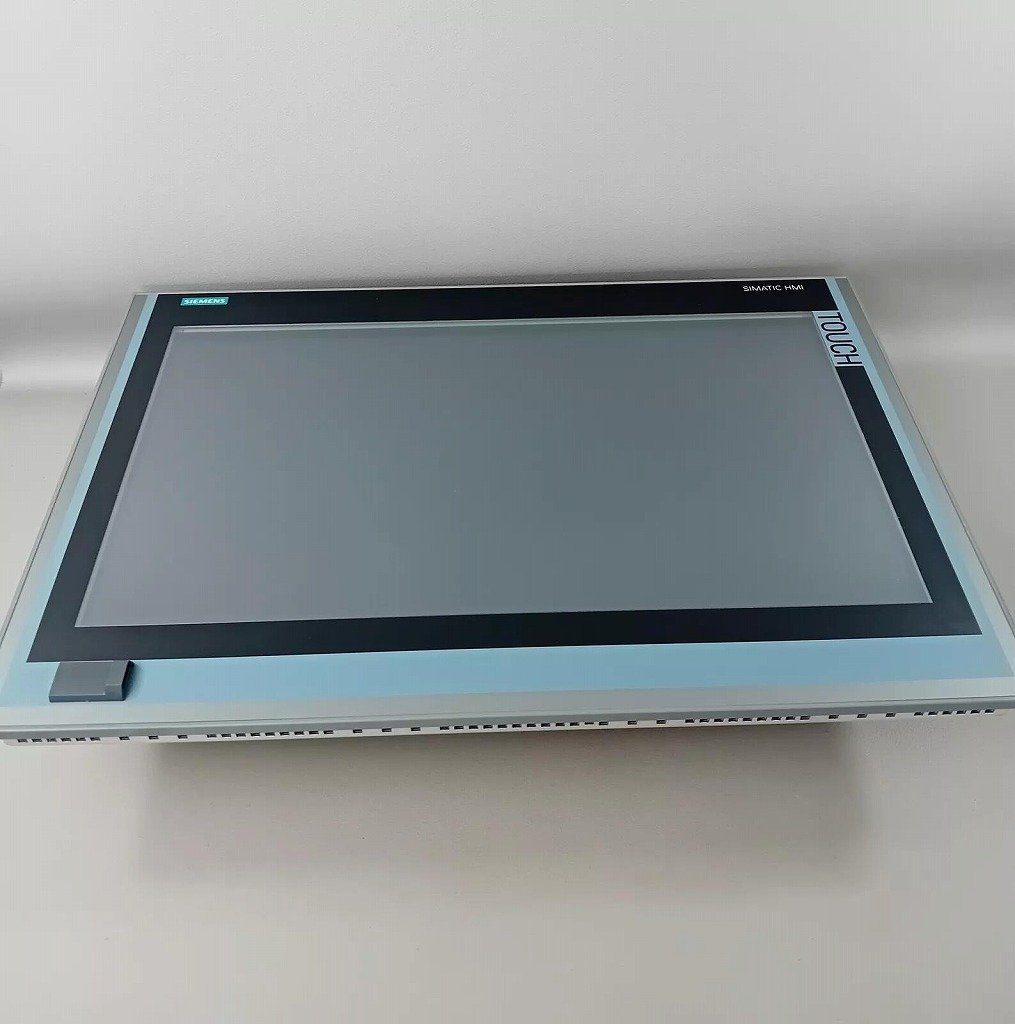

SIMATIC IPC677D (Panel PC), 2×10/100/1000 Mbit/s Ethernet; 4x USB V3.0, 1x serial (COM1); Watchdog, temperature and Fan monitoring; RAID controller onboard; 15″ Touch (1280x 800); with front USB XEON E3-1268LV3 (4C/8T, 2.3 (3.3) GHz, 8 MB cache VT-D, AMT); PROFIBUS/MPI CP 5622-compatible); 2 MB buffered SRAM 500 GB HDD SATA; DVD +/-RW; 8 GB DDR3 1600 DIMM; 2x PCI without expansion (HW) Windows 7 Ultimate 64 bit SP1, MUI (de, en, fr, es, it) without expansion (software) AC 110/230V industrial power supply unit with NAMUR; Power supply cable Europe
| Product | |
| Article Number (Market Facing Number) | 6AV7260-0HB30-0BX0 |
| Product Description | SIMATIC IPC677D (Panel PC), 2×10/100/1000 Mbit/s Ethernet; 4x USB V3.0, 1x serial (COM1); Watchdog, temperature and Fan monitoring; RAID controller onboard; 15″ Touch (1280x 800); with front USB XEON E3-1268LV3 (4C/8T, 2.3 (3.3) GHz, 8 MB cache VT-D, AMT); PROFIBUS/MPI CP 5622-compatible); 2 MB buffered SRAM 500 GB HDD SATA; DVD +/-RW; 8 GB DDR3 1600 DIMM; 2x PCI without expansion (HW) Windows 7 Ultimate 64 bit SP1, MUI (de, en, fr, es, it) without expansion (software) AC 110/230V industrial power supply unit with NAMUR; Power supply cable Europe |
| Series name | SIMATIC IPC677D |
| Panel PC | |
| Size | 15″ Touch |
| Resolution ratio | 1280x 800 |
| Processor type/CPU | XEON E3-1268LV3 |
| Memory capacity | 8 GB DDR3 1600 DIMM |
| Harddisk | 500 GB HDD SATA |
| Operating system/OS | Windows 7 Ultimate 64 bit SP1, MUI |
| Communication Interface | PROFIBUS/MPI |
| Network Interface | 2×10/100/1000 Mbit/s Ethernet |
| Other interface | 4x USB V3.0, 1x serial (COM1) |
| Programming software | without |
| Power supply | AC 110/230V |
| Warranty | 1 year |
| Net Weight (kg) | 17.000 Kg |
| Packaging Dimension | Not available |
| Country of origin | Germany |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Additional Product Information | |
| EAN | Not available |
| UPC | Not available |
| Commodity Code | 84714100 |
| LKZ_FDB/ CatalogID | ST80.1U |
| Product Group | 4385 |
| Group Code | R133 |
